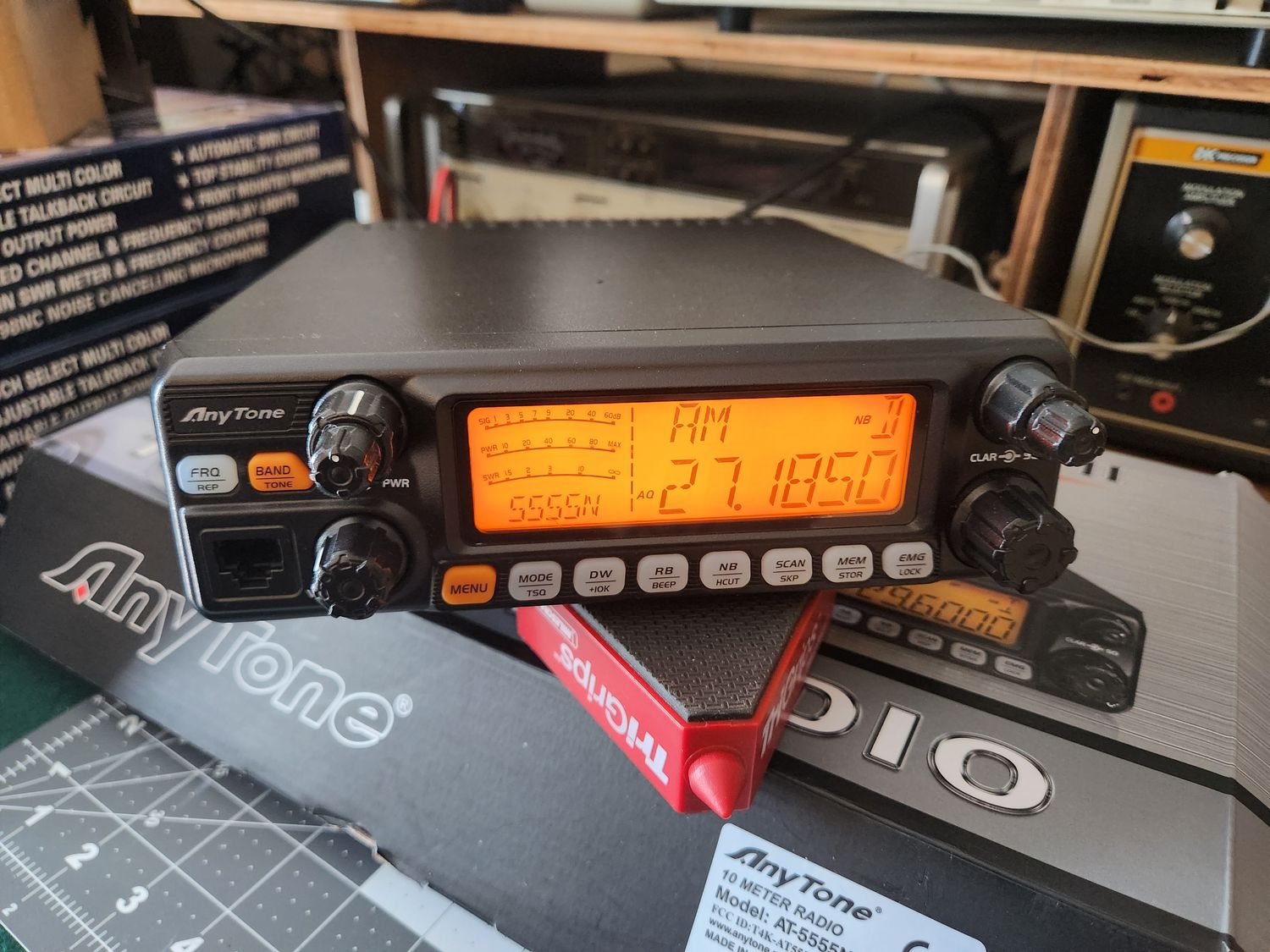

Anytone AT-5555N II
$200.00
In stock
Product Details
Open box item. May show signs of slight use. Protective film still on screen. All sales final. Ships free to the continental USA only. Contact us for shipping options outside the continental USA.
GENERAL
| Frequency Range: | 28.000-29.700MHz(Programmable) |
| Frequency Band: | A/B/C/D/E/F/G/H/I |
| Channel: | 40channels(programmable)in each band |
| Frequency Control: | Phase-Locked-Loop Synthesizer |
| Frequency Step: | 100Hz、1KHz、10KHz、100KHz、1MHz |
| Microphone: | with push-to-talk/UP/DN and coiled cord |
| Input Voltage: | 13.8V |
| Antenna Connector: | UHF, SO239 |
TRANSMITTER
| Power Output: | AM PEP: 60W / FM: 50W / SSB: 60W(PEP) |
| Drain: | 10A(with modulation) |
| Modulation: | AM/FM/USB/LSB |
| Inter-modulation Distortion: | SSB: 3rd order, more than -25dB; 5th order, more than -35dB |
| SSB Carrier Suppression: | 55dB |
| Unwanted Sideband: | 50dB |
| Frequency Response: | AM/FM: 300 to 3000Hz, SSB: 450 to 2500Hz |
| Output Impedance: | 50ohms, unbalanced |
RECEIVER
| Sensitivity: | SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output |
| . | AM:1.0μV for 10dB(S+N)/N at greater than 1/2watt of audio output |
| . | FM: 1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output |
| Adjacent-Channel Selectivity: | AM/FM: 60dB, SSB: 70dB |
| Image Rejection: | More than 65dB |
| IF Frequency: | AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF, SSB: 10.695MH |
| Audio Output Power: | 3 watts into 8 ohms |
| Frequency Response: | AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz |
| Built-in Speaker: | 8 ohms, round |
Anytone AT-5555N II
